Loreen Wet Shotcrete Spraying Concrete Machine Jpts4-L Model

본문 바로가기


Home > Product > Loreen Wet Shotcrete Spraying Concrete Machine Jpts4-L Model
Selling leads
Loreen Wet Shotcrete Spraying Concrete Machine Jpts4-L Model
Posting date : Jul 17, 2021
Membership
Free Member Scince Jul 03, 2021
FOB Price
1
Min. Order Quantity
1pcs
Supply Abillity
20pcs
Port
QING DAO
Payment Terms
LC/TT
Package
-
Keyword :
Category
Contact
Paul Liu
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
LOREEN
HS-CODE
-
Package & Delivery Lead Time
Package
-
Detailed Description

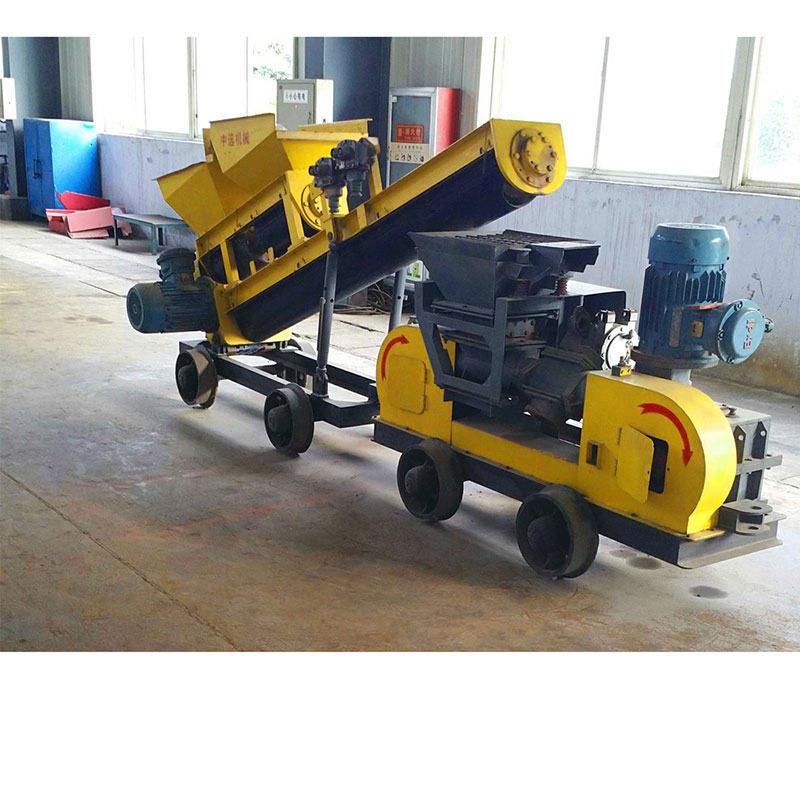

Loreen Wet Shotcrete Spraying Concrete Machine Jpts4-L Model

Application

Jpts4-L product is a wet concrete spraying equipment developed by our company together with domestic concrete conveying equipment experts, which is widely used in coal mine, tunnel, culvert, subway, and hydropower engineering construction.

You can click here to get shotcrete machine price

shotcrete equipment-LOREEN Technical Parameter



Production capacity

4~6 m³/h

Dimensions

2300 x850x 1260mm

Concrete sprayer weight

960 kg

Power of concrete sprayer

5.5 kW

Gas consumption

< 12 m³/ min

Air pressure

> 0.3 MPa

Spray distance/height

80/20 m

Pipe diameter

64 mm

Auxiliary motor power

0.55 kW

Applicable material mix proportion

Cement: sand: stone =1:2:2

Overall dimensions of feeder

2800 x 1050 x1540mm

Weight of feeder

760 kg

Power of feeding machine

5.5 kW

Height of feeding machine

1.25/1.45 m

Maximum aggregate size

20 mm

Adaptive collapse

100 ~ 180 mm

Gauge

600/900 mm

Voltage grade

1140/660 v
