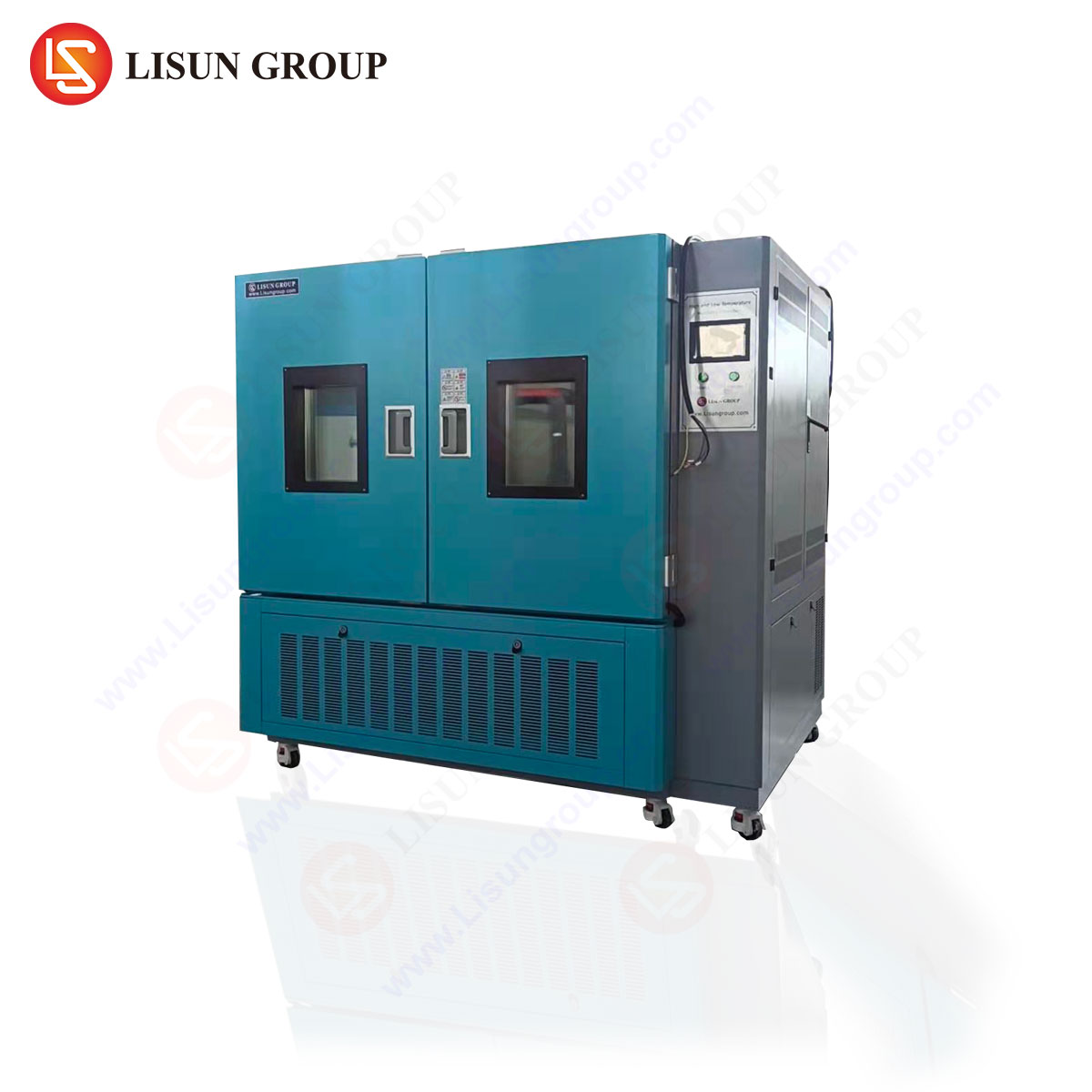

High and Low Temperature Humidity Chamber

Posting date : May 06, 2021

Click enlarge Image

Membership

Free Member Scince Oct 24, 2013

FOB Price

Min. Order Quantity

Supply Abillity

Port

Shanghai

Payment Terms

Package

Wooden cases

Keyword :

High and Low Tempera

Category

Contact

Jacky

Selling Leads Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

LISUN

Model Number

GDJS-015B

HS-CODE

Package & Delivery Lead Time

Package

Wooden cases

Delivery Lead Time

Detailed Description

High and Low Temperature Humidity Chamber is according to IEC60068-2-1 (GB/T2423.1) and IEC60068-2-2 (GB/T2423.2), IEC60068-2-78, IEC60598-1, GB/T2423.17, GB/T5170.2, GB/T5170.5. It is used to test the CFL/LED which meets IES LM-80-08, electricity products, electronic components, material and so on.

Specifications:
•The chamber is made of SUS304 Steel. The thermal insulation layer is made of polyurethane hard foam ultra-fine glass fiber. The heat-insulated doorframe uses high temperature aging silicone rubber sealing strip.
•The temperature controller includes Korean TEMI display in English/Chinese and German Siemens PLC. It can communicate with PC via RS-232. The temperature accuracy is 0.1℃ and humidity accuracy is 0.1%R.H
•The temperature sensor is platinum PT100Ω/MV
•The independant heating system uses nickel-chrome electric heater
•The refrigerating system is fully enclosed air-cooled single-stage compression refrigeration mode, and the compressor is from France TECUMSEH brand which can allow you get after sales support from many other countries
•The circulation system uses temperature resistant and low noise air-conditioned motor and multi-blade centrifugal wind wheel
•The safety protection system includes electric leakage, short circuit, over temperature, motor overheating, compressor pressure, overload, over-current protection
•Working Voltage: AC380V±10% 3phases and frequency 50Hz/60Hz
•Working Environmental: Temperature is 5℃～+30℃ Humidity ≤85%R.H

High & Low Temperature and Humidity Chamber with Programmable Function (GDJS Series)
Model (cm)	GDJS-225*	GDJS-500*	GDJS-010*	GDJS-013*	GDJS-015*
Workroom Dimensions	50x60x75	70x80x90	100x100x100	100x100x130	100x100x150
Exterior Dimensions	105102200	132132217	167152231	217152231	245160231
Work Power	7.0kW	13.5kW	15.0kW	16.5kW	16.5kW
Temperature Range	A: -20℃-150℃ B: -40℃-150℃ C: -60℃-150℃ D: -70℃-150℃
Humidity Range	30%~98% R.H
Fluctuation/Evenness	±0.5℃/±2℃
Humidity Deviation	-2%~-3% R.H
Temperature Rise Speed	1.0℃~3.0℃/min
Temperature Down Speed	0.7℃~1.0℃/min

High and Low Temperature Chamber with Programmable Function (GDJW Series)
Working Room Size	GDJW-225*	GDJW-500*	GDJW-010*	GDJW-013*	GDJW-015*
Workroom Dimensions (cm)	50x60x75	70x80x90	100x100x100	100x100x130	100x100x150
Temperature Range	A: -20℃-150℃ B: -40℃-150℃ C: -60℃-150℃ D: -70℃-150℃
Fluctuation/Evenness	±0.5℃/±2℃
Temperature Rise Speed	1.0℃~3.0℃/min
Temperature Down Speed	0.7℃~1.0℃/min

The * in GDJS-225* means the temperature range A: -20℃-150℃, B: -40℃-150℃, C: -60℃-150℃，D: -70℃-150℃

[caption id="attachment_6142" align="aligncenter" width="400"]

High and Low Temperature Humidity Chamber GDJS AL5

High and Low Temperature Humidity Chamber Test Curve[/caption] [caption id="attachment_6141" align="aligncenter" width="400"]

High and Low Temperature Humidity Chamber GDJS AL4

High and Low Temperature Humidity Chamber Programmable Setting[/caption]

https://youtu.be/tCSLNd5ScAI
