UL746A IEC 60695 DIN 695 Glow-wire Test Apparatus
Posting date : May 06, 2021
Membership
Free Member Scince Oct 24, 2013
FOB Price
1
Min. Order Quantity
1
Supply Abillity
10
Port
Shanghai
Payment Terms
TT
Package
Wooden cases
Keyword :
Category
Contact
Jacky
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
LISUN
Model Number
ZRS-3H
HS-CODE
-
Package & Delivery Lead Time
Package
Wooden cases
Delivery Lead Time
30
Detailed Description

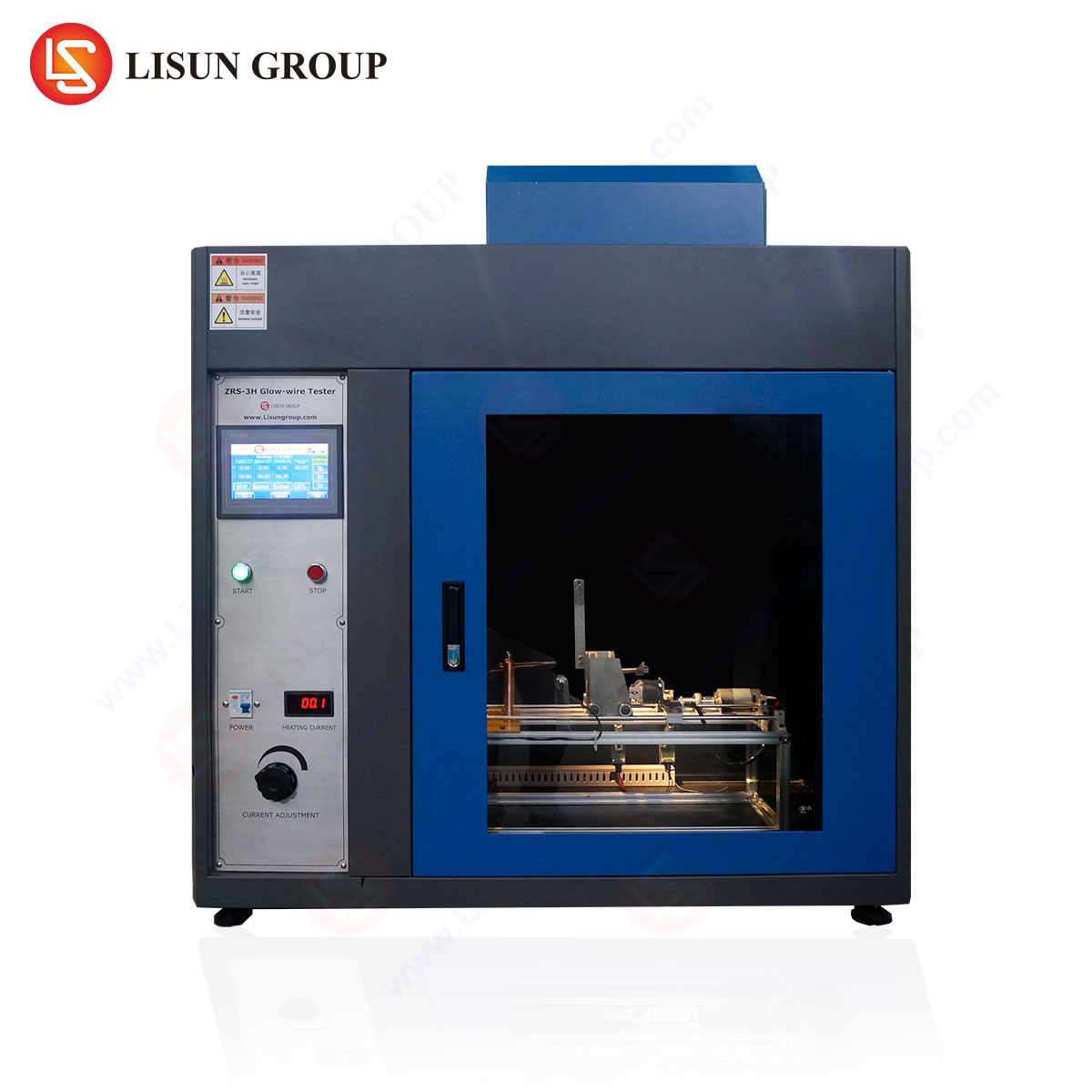

The ZRS-3H Glow-wire Test Apparatus is according to IEC60695-2-1, IEC60695-2-10, IEC60695-2-11, IEC60695-2-12, IEC60695-2-13 (GB/T5169.10, GBT5169.11, GBT5169.12, GB/T5169.13) < basic testing methods of Glow wire, basic testing methods of Glow wire device>, UL 746A, IEC829, DIN695 and VDE0471. The Glow wire tester ZRS-3H/ZRS-3HS is suitable for resistance to abnormal heat and fire test on lighting lamps, electronic products and household appliances. It uses high-temperature coating spraying on steel structure and imported instrument display, with easy operation and stable performance. The equipment is applicable to flame resistance test of all levels of QC departments and corresponding enterprises.

Specifications:
• Heating temperature: adjustable continuously within the range of ≤500-1000°C, the accuracy of temperature is 1°C, the resolution of temperature is ±3°C
• Glowing time: 0.1-999.9s,±0.1S(time range is adjustable)
• Burning time: 0.1-999.9s, auto record, manual pause
• Flame chilling time: 0.1-999.9s (auto record and manual pause)
• Glow wire pressure on test specimen: 1±0.2N. Limiting pressure depth is 7mm
• Glow wire: φ4 nickel (80%) and chromium (20%) Made in specific dimensions.
• Thermoelectric couple: φ0.5 armored nickel & chromium/nickel-chromium wire, K degree.
• Auto break away: While reaching specified glowing time, test specimen will break away from glow wire automatically.

To save the delivery cost for the oversea market, LISUN designed a compact version glow-wire tester which gross weight is less than 50kg. (Customer need to prepare additional ventilation system for ZRS-3HS)

[caption id="attachment_4376" align="aligncenter" width="400"] ZRS-3HS Glow-wire Test Apparatus (Compact Version)[/caption]



https://youtu.be/KkLq4rsbvEI
