ESD Simulator | IEC 61000-4-2 Electrostatic Discharge Simulator

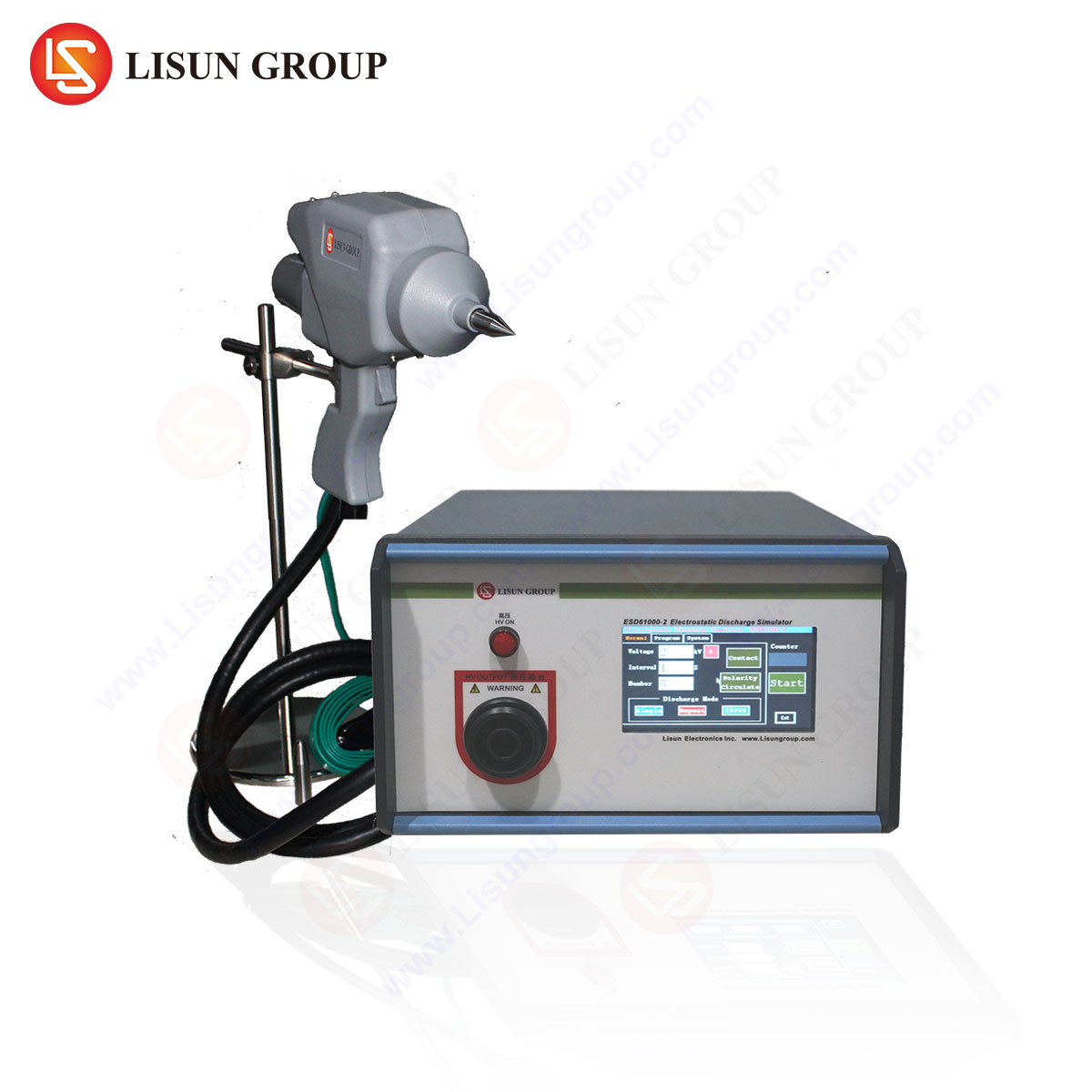

China [CN] ESD simulator (Electrostatic Discharge Generator or Electrostatic Gun) is in full compliance with IEC 61000-4-2, EN61000-4-2, ISO10605, GB/T17626.2, GB/T17215.301 and GB/T17215.322.
The ESD generator is designed for the withstanding ESD performance measurement for the assessment of electrical and electronic equipment. ESD61000-2/ESD61000-2A has a LCD touch screen in both English and Chinese. (P.S. Additional cost for metal supports)
Electrostatic discharge simulator is highest electrostatic voltage can be up to 30 kv, which is enough to cover the most severe standard grade of electrostatic voltage requirement (the voltage requirements of the grade 4 air discharge electrostatic is 15 KV). The Electro-Static Discharge tester can be used for the most of electrical and electronic equipment for electrostatic discharge test, and also can ensure comparability and reproducibility of test.
Specifications:
| Product Model | ESD61000-2 | ESD61000-2A |
| Output Voltage | 0.1~20kV±5% | 0.1~30kV±5% |
| Polarity | Positive/Negative | Positive/Negative |
| Energy Storage Capacitance | 150pF±10% (Replaceable) | 150pF±10% (Replaceable) |
| Discharge Resistor | 330Ω±5% (Replaceable) | 330Ω±5% (Replaceable) |
| Current Rise Time | 0.6~1ns | 0.6~1ns |
| Testing Functions | Single, Count, 20pps, Air, Contact, IEC level | Single, Count, 20pps, Air, Contact, IEC level |
| Trigger Mode | MANUAL/AUTO | MANUAL/AUTO |
| Numbers of Discharge | 1~9999 | 1~9999 |
| Repetition | 0.05s~99.99s | 0.05s~99.99s |
| Working Power | AC220V (Option 110V) ±10%, 50/60Hz | AC220V (Option 110V) ±10%, 50/60Hz |
Calibrate Report:
| Output Voltage (kV) | First Peak Current (A) | Current at 30ns (A) | Current at 60ns (A) | Rise Time (ns) |
| 2 | 7.29 | 4.10 | 2.20 | 0.93 |
| 4 | 15.40 | 7.90 | 4.30 | 0.97 |
| 6 | 23.20 | 12.10 | 6.50 | 0.97 |
| 8 | 29.40 | 16.20 | 9.30 | 0.89 |
| -2 | 7.39 | 3.50 | 2.30 | 0.92 |
| -4 | 15.50 | 7.70 | 4.30 | 0.89 |
| -6 | 23.40 | 11.90 | 6.30 | 0.90 |
| -8 | 31.80 | 16.10 | 8.20 | 0.90 |
We suggest you choose LISUN ESD Simulator Test Desk to work with ESD61000-2:
[caption id="attachment_5929" align="aligncenter" width="400"]
ESD Standard DESK[/caption]
Waveform:
Click enlarge Image
