ISO7637 ISO16750 Multifunctional Immunity Test System For Automotive Electronics
Posting date : May 06, 2021
Membership
Free Member Scince Oct 24, 2013
FOB Price
1
Min. Order Quantity
1
Supply Abillity
10
Port
Shanghai
Payment Terms
TT
Package
Wooden cases
Keyword :
Category
Contact
Jacky
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
LISUN
Model Number
EMS-ISO7637
HS-CODE
-
Package & Delivery Lead Time
Package
Wooden cases
Delivery Lead Time
30
Detailed Description

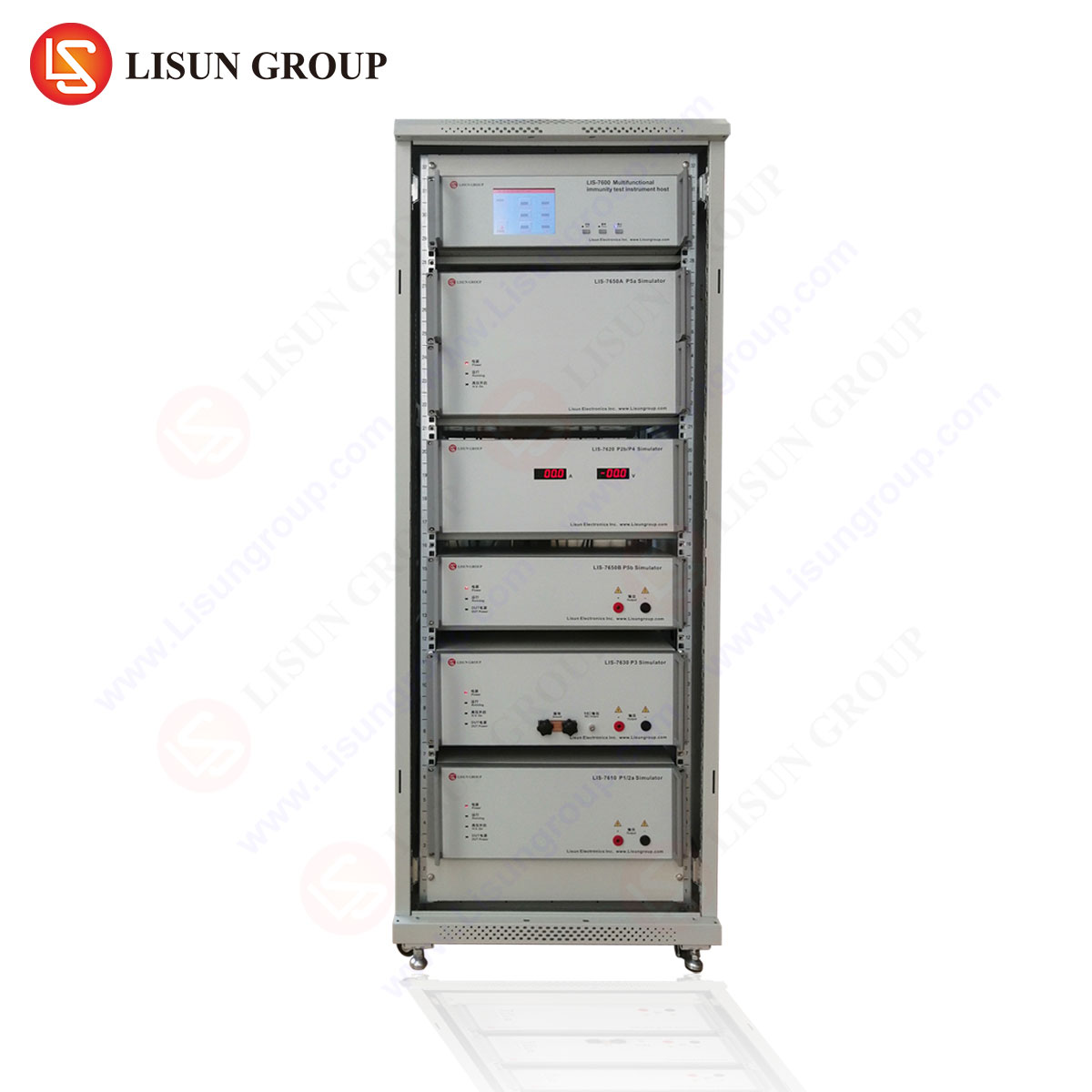

EMS-ISO7637 automotive multifunctional immunity test system fully meets newest ISO7637-2 <Road Vehicles – Conductive Coupling Electrical Interference – Part 2 Electrical Transient Conductivity Tests for Power Lines> , ISO16750-2, ISO7637-1, GB-T21437.2 requirements. This standard was issued by international organization for standardization. LISUN EMS-ISO7637 system includes all the waveforms required by ISO7637-2 and it meets most of automotive manufacturer’s requirement for automotive electronic immunity test.

Technical Characteristics:
• This system includes all the waveforms required by ISO7637-2: 2011 standard (ISO16750-2 is optional).
• Operation screen: Adopted with big colorful LCD touch screen and applied with main module expand technology architecture design.
• Designed for 12V/24V automotive electronic immunity test.
• Built-in various host interfaces and can work with LISUN software on a PC.
• The software includes all relevant standards, and customers can also add or update the standards.

System Configuration:

Product Name

Model

Specification

Multifunctional Immunity Test instrument Host

LIS-7600

Master control device

P1/2a Simulator

LIS-7610

Pulse 1 & pulse 2a

P2b/4 Simulator

LIS-7620

Pulse 2b & pulse 4

P3 Simulator

LIS-7630

Pulse 3a & pulse 3b

P2b/4 Simulator

LIS-7640

Pulse 2b & pulse 4(full comply ISO7637-2 and ISO16750-2)

P5a/5b Simulator

LIS-7650

Pulse 5a & pulse 5b

Artificial Network

LISN200

Transient conducted emission EMI test

Switch

TES200N

Transient conducted emission EMI test

Capacitive Coupling Clamp (Option)

VFTC

Vehicle electronic interference test

19 Inch Cabinet (Option)

CASE-19

Loading control host device and all pulse generator together

EMS-ISO7637 Automotive Immunity Test System Software

https://youtu.be/Hsl_TnCPtIQ
