EMI Test Receiver | EN55015 EN55022 EMI Receiver System
Posting date : May 06, 2021
Membership
Free Member Scince Oct 24, 2013
FOB Price
1
Min. Order Quantity
1
Supply Abillity
10
Port
Shanghai
Payment Terms
TT
Package
Wooden cases
Keyword :
Category
Contact
Jacky
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
LISUN
Model Number
EMI-9KB
HS-CODE
-
Package & Delivery Lead Time
Package
Wooden cases
Delivery Lead Time
30
Detailed Description

EMI-9KB is an automatic EMI receiver system for EMI (Electromagnetic Interference) radiation conduction or conducted emissions testing.

The EMI-9KB is produced by the full closure structure and strong electro-conductibility material, which has high shielding effect. Due to the new technology for the EMI Test System, it solved the instrument self-EMI problem. The test results are according to the international format test report. The EMI Test System EMI-9KB fully meets CISPR15:2018, CISPR16-1, GB17743, FCC, EN55015 and EN55022.

System Configurations:

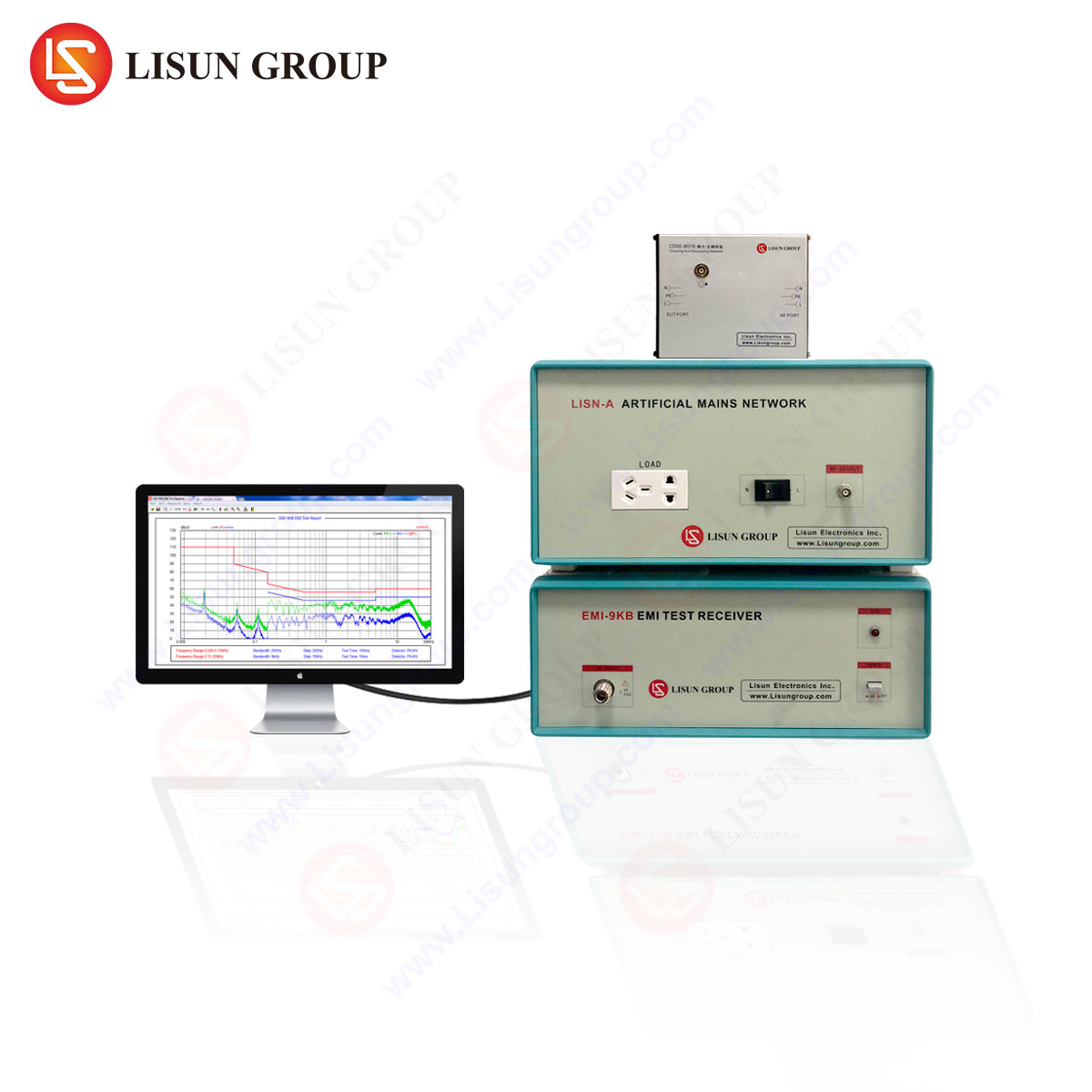

• EMI-9KB Test System includes: EMI-9KB 9K-300MHz Receiver, LISN-A 5A Artificial Network Power, CDNE-M316 Coupling/Decoupling Network for Emission, 3pcs Isolation Transformers, Attenuator and cables.
• EMI-9KA Test System includes: EMI-9KA 9K-30MHz Receiver, LISN-A 5A Artificial Network Power, 3pcs Isolation Transformers, Attenuator and cables.

Option instruments to work with the EMI-9KB/EMI-9KA:
LISUN LSP-500VARC/LSP-1KVARC Pure Sine Wave AC Power Source for EUT
LISUN SDR-2000B Magnetic Shielding Cabinet for the EMI Receiver System
LISUN VVLA-30M Three Loop Antenna to test 9k-30MHz Radiation
LISUN AB-CLP Absorbing Clamp to test the Home Applications & motor tools

Specification:
• Detection frequency range: 9kHz~30MHz (EMI-9KA) , 9kHz~300MHz (EMI-9KB), 9kHz~1GHz (EMI-9KC)
• Frequency stability: 1x10^-6
• Frequency resolution: (9kHz~150kHz) 30Hz; (150kHz~30MHz) 1kHz
• Test Tolerance: ±2 dB
• Measure and Detection method: PK, QP and AV
• Measure range from 20dBμV to 140dBμV
• Frequency scanning step length: 20Hz~2MHz
• Sweep bandwidth: 200Hz; 9kHz; 120kHz
• Connect PC via USB cable and software can run on Win7, Win8 and Win10

Noted: According to latest CISPR15:2018 standard, you need to use CDNE-M316 (Coupling/Decoupling Network for Emission) to instead the CDN. The CDNE-M316 worked with EMI receiver system is equivalent to test radiated electromagnetic disturbance of electric lighting appliance with frequency from 30M-300mHz

[caption id="attachment_4491" align="aligncenter" width="400"] CDNE-M316 Coupling/Decoupling Network for Emission[/caption]

https://youtu.be/ZtziW_wQGYY
