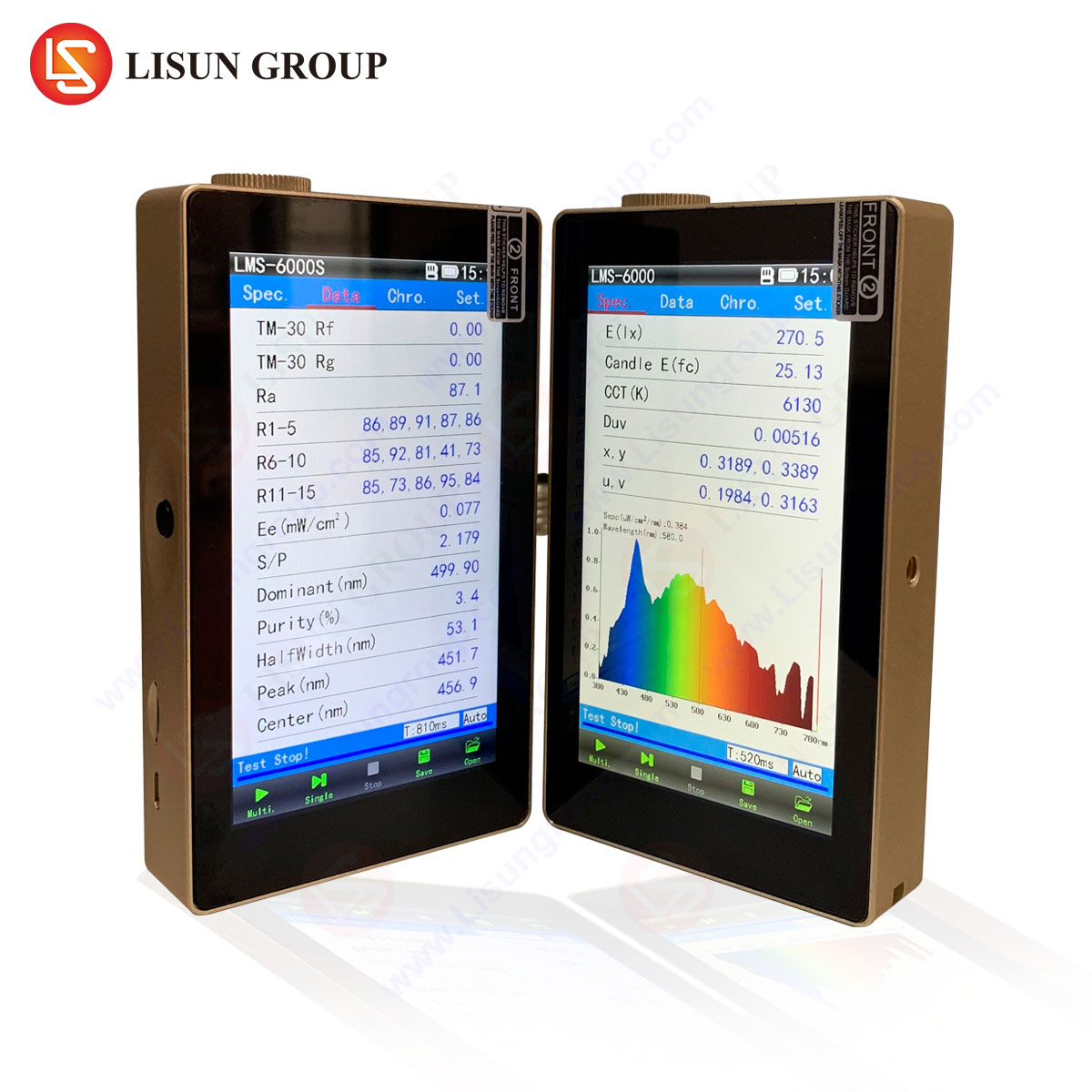

Portable CCD LED Colorimeter Spectroradiometer For CCT, CRI, CQS Test
China [CN] The Portable CCD LED Colorimeter Spectroradiometer has the following versions which can measure different parameters:
| LISUN Model | Function | Wave Range |
| LMS-6000 | illuminance (lux), E(Fc), Ee(W/m2), Tc (K), Duv Correlated Color Temperature (CCT), Chromaticity Coordinates, CRI, Purity, Peak Wavelength, Dominant Wavelength, Half Bandwidth, Center Wavelength, Centroid Wavelength, Total Color Difference, Brightness Difference, Red-Green Degree, Yellow-Blue Degree, CCT Difference, SDCM Diagram, Spectrum Diagram | 380-780nm |
| LMS-6000B | LMS-6000 Parameters+Blue Light Hazard Weighted Irradiance according to GB/T20145, CIE S009/E:2002 | 380-780nm |
| LMS-6000BF | LMS-6000 Parameters+Flicker test, Blue Light Hazard Weighted Irradiance according to GB/T20145, CIE S009/E:2002 | 380-780nm |
| LMS-6000F | LMS-6000 Parameters+Flicker test | 380-780nm |
| LMS-6000L | cd/m2, fL, Tc (K), Duv Correlated Color Temperature (CCT), Chromaticity Coordinates, CRI, Purity, Peak Wavelength, Dominant Wavelength, Half Bandwidth, Center Wavelength, Centroid Wavelength, Total Color Difference, Brightness Difference, Red-Green Degree, Yellow-Blue Degree, CCT Difference, SDCM Diagram, Spectrum Diagram | 380-780nm |
| LMS-6000P | LMS-6000 Parameters+PAR, PPFD, YPFD, Blue-purple irradiance Eb, Yellow-green irradiance Ey, Red-orange irradiance Er, Ratio of red and blue radiation Erb_Ratio | 380-800nm |
| LMS-6000S | LMS-6000 Parameters+PAR, PPFD, YPFD, Blue-purple irradiance Eb, Yellow-green irradiance Ey, Red-orange irradiance Er, Ratio of red and blue radiation Erb_Ratio, Rf and Rg according to TM-30 | 350-950nm |
| LMS-6000UV | UV-A, UV-B, UV-C and UV total Radiant Irradiance, UV hazard irradiance, UV spectrum, Dominant Wavelength, Peak signal, Start wavelength, End wavelength. Please click here to see the LMS-6000UV Test Report. | 200-400nm |
| LMS-6000SF | LMS-6000 parameters+Flicker+Plant Lighting parameters+TM-30 | 350-950nm |
| LMS-6000I | Input and Output Control via RS485 | 380-780nm |
| LMS-6000C | LMS-6000 parameter without PC software | 380-780nm |
Standards:
Fully meet CIE 177, CIE-13.3 , Optical-Engineering-49-3-033602, and IEEE.
The Chroma Meter Specifications:
• Spectral resolution: ±0.2nm, Reproducibility: ±0.5nm
• Accuracy of chromaticity coordinate (Δx, Δy): ±0.005
• Correlated color temperature CCT: 1, 000K ~ 100, 000K (±0.6%)
• Illuminance range: 5~200,000lx
• LCD screen: 5inch high definition IPS capacitive touch screen and resolution is up to 480*854
• With 4000mAh rechargeable Li-ion battery which can continuously work for 20 hours
• Dimensions: 135mm*80mm*23mm
• Connect to PC via USB cable. English version software can run on Win7, Win8 or Win10
