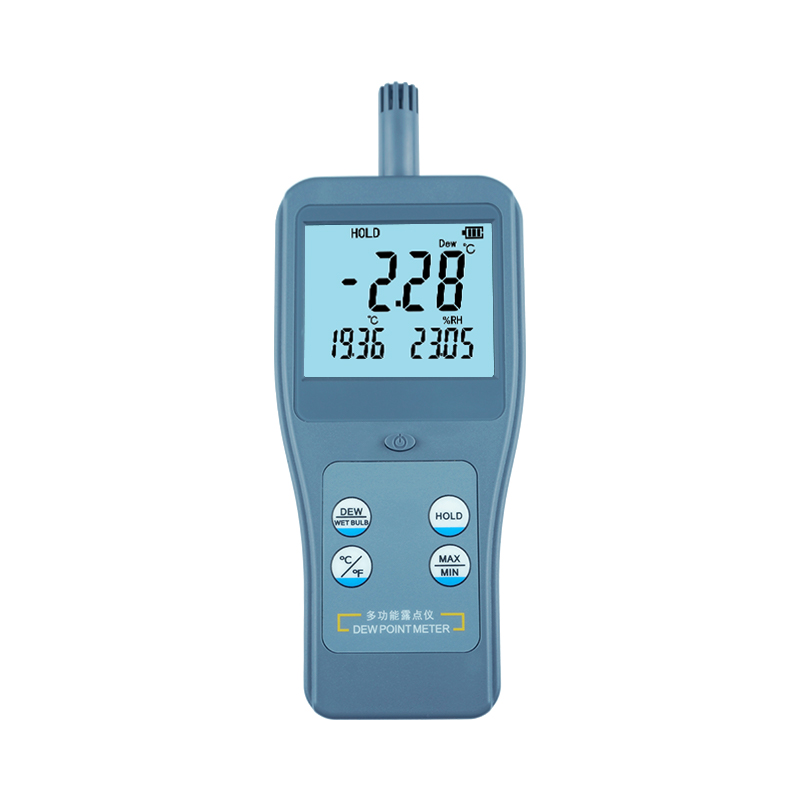

RTM2601 Portable Dew Point Meter

Introduction

It is a professional portable digital dew point meter. It is able to measure Relative Humidity, Ambient Temperature, Dew Point Temperature, Wet Bulb Temperature. It can quickly respond to temperature and humidity measurements in the industrial range. It is also capable of measuring temperature and humidity in a variety of complex environments. Widely used in workshops, warehouses, libraries, offices, computer rooms, laboratories and other environmental temperature and humidity monitoring occasions.

Features

• Large LCD with display. It can display three values at the same time.

• Humidity measurement.

• Temperature measurement.

• Dew Point Temperature measurement.

• Wet Bulb Temperature measurement.

• Temperature unit (°F/°C).

• 0.01 high resolution.

• High accuracy.

• With maximum and minimum values function.

• With the displayed values hold function.

• With battery indication function.

• With automatic power off function.

Specifications

Display	Backlit LCD
Test Parameters	Ambient Temperature, Relative Humidity, Dew Point Temperature, Wet Bulb Temperature
Ambient Temperature	Range	-20~80°C (-4~176°F)
	Accuracy	±0.2°C (60~80°C) ±0.15°C (20~60°C) ±0.2°C (-20~20°C)
	Resolution	0.01 (<100) 0.1 (Other)
Relative Humidity	Range	0~100%RH
	Accuracy	±1.5%RH (0~80%RH) ±2%RH (80~100%RH)
	Resolution	0.01
Dew Point Temperature	Range	-20~80°C (-4~176°F)
Dew Point Temperature	Resolution	0.01 (<100) 0.1 (Other)
Wet Bulb Temperature	Range	0~40°C (32~104°F)
Wet Bulb Temperature	Resolution	0.01 (<100) 0.1 (Other)
Temp. Unit	°C/°F
Operating Conditions	Temperature	0~50°C (32~122°F)
Operating Conditions	Humidity	0~80%RH (No condensation)
Storage Conditions	Temperature	-10~60°C (14~140°F)
Storage Conditions	Humidity	0~90%RH (No condensation)
Power Supply	4×1.5V AAA(UM-4) Battery
Size	205×80×31mm
Weight	182g (Not Including Batteries)

Standard Accessories

Main Unit	1
Manual	1
Carrying Case	1

The warranty period is 12 months
