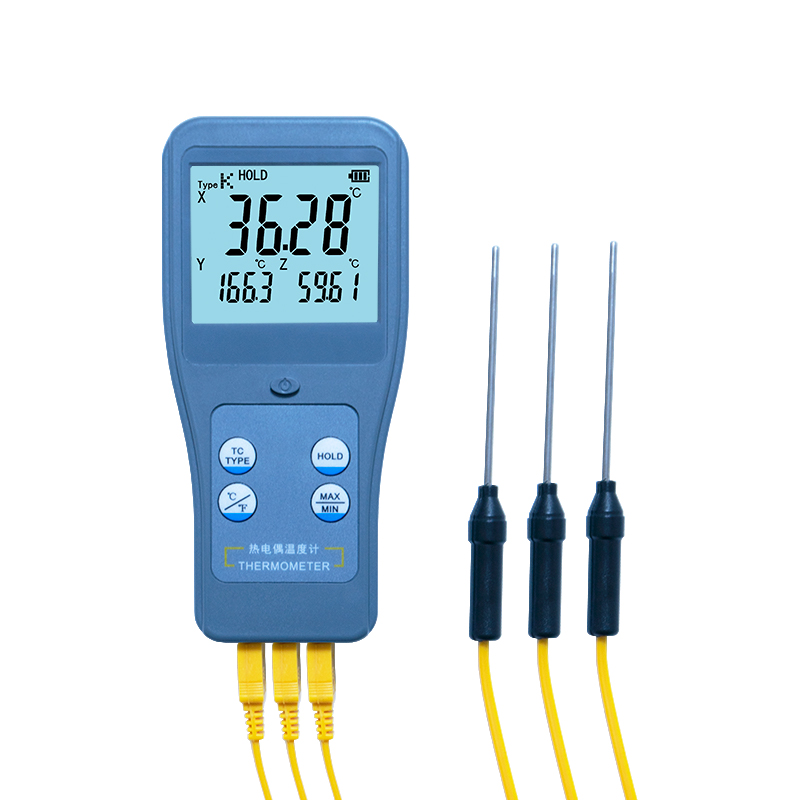

RTM1103 High Accuracy T-type Thermocouple Temperature Tester
0 likes
China [CN] Introduction
It is a
high-precision of 3-channel thermocouple thermometer, which uses thermocouples
as sensors to measure temperature signals, can meet the needs of different
industries. Used to measure the temperature of liquids, gases, solids and
surface temperature. And there are a variety of thermocouple types to choose
from, which are widely used in industrial production, research and development
experiments, food processing, refrigerated storage, metal industry and other
occasions.
Features
• Large
LCD with display. It can display three values at the same time.
•
Thermocouple(K/J/E/T/R/S/N) temperature measurement.
• The
types of 3-channel thermocouple are switched simultaneously.
•
Temperature unit (°F/°C).
• 0.01
high resolution.
• High
accuracy.
• With
maximum and minimum values function.
• With
the displayed values hold function.
• With
battery indication function.
• With
automatically power off function.
Specifications
|
Display |
Backlit LCD |
|
Thermocouple
Type |
K/J/E/T/R/S/N-type |
|
Range(K-type) |
-200~1372°C (-328~2501.6°F) |
|
Accuracy(K-type) |
>-100°C,
±(0.1% of reading+0.5°C) <-100°C,
±(0.3% of reading+0.5°C) |
|
Resolution |
0.01 |
|
Sampling Channel |
3 Channels |
|
Unit |
°C/°F |
|
Operating
Conditions |
Temperature:
0~50°C (32~122°F) Humidity:
0~80%RH(No Condensation) |
|
Storage
Conditions |
Temperature:
-10~60°C (14~140°F) Humidity:
0~90%RH(No Condensation) |
|
Power Supply |
4×1.5V AAA(UM-4)
Battery |
|
Size |
170*80*31mm |
|
Weight |
191g(Not
Including Batteries) |
Standard
Accessories
|
1 |
|
|
TP-02 Thermocouple (φ3*75mm,
K-type, Range: -50~400℃) |
3 |
|
Manual |
1 |
|
Carrying Case |
1 |
Note:
The
default type of thermocouple in the standard accessories is K-type. If other
types of thermocouple are needed, please specifying when placing order.
The warranty period is
12 months
