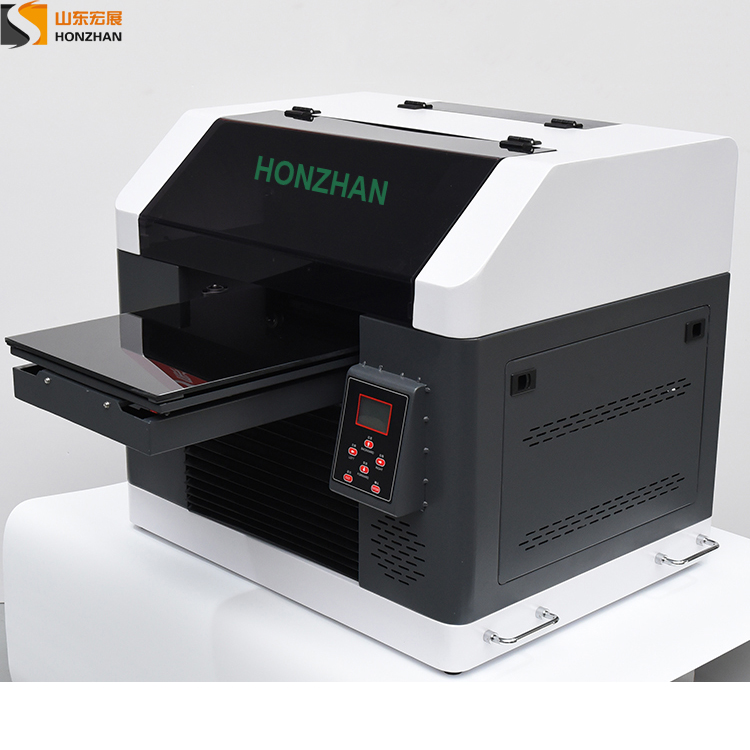

Honzhan HZ-A324 A3 size UV flatbed printer 320×440mm
0 likes
China [CN] Honzhan HZ-A324 A3 size UV flatbed printer 320×440mm
1. Printer application:
UV printer can print on many flat surface materials, such as wood, acrylic, plastic, resin, foam board, KT board,
PVC, metal, aluminum, glass, ceramic, stone, sticker, leather, phone case, pens, crystal, ABS/EVA, golf ball, bottle, etc.
2. Printer features:
The advantages of our Honzhan HZ-A324 A3 size digital UV printer:
1). Our UV printer equipped with Epson XP600 printhead to meet the demand of high resolution and faster speed.
Epson XP600 printhead has 6 channels × 180nozzles = total 1080 nozzles, its inkjet volume and speed are great.
2). Our printer using industrial grade control boards, realize industrial-grade product design,
belongs to industrial printing machine, fast printing speed, very less after-sales problem.
3). Automatic capping system is easy operation and maintenance for our UV printer.
4). This UV printer is combined inkjet printing and UV led lamp curing drying system,
printed image can be dry directly after printing, and the printed image have embossed effect.
5). We use specially R&D printing software for our printers, very stable and easy to operate, complete in operation data.
3. Technical parameters:
Model | HZ-A324 UV printer with single-printhead | HZ-AT324 UV printer with dual-printhead |
Printhead | 1pc Epson XP600 printhead | 2pcs Epson TX800 printheads |
Nozzle type | Micropiezo inkjet printing | |
Print Resolution | 360*720dpi, 720*720dpi, 720*1440dpi, 1440*1440dpi, 720*2880dpi | |
Printing size | 320*440mm | |
Print materials thickness | 0-250mm | |
Operation interface | Button operation panel | |
Print mode | Unidirection or Bidirection | |
Nozzle clean | Auto cleaning system with anti clogged flash spray and moisturizing function | |
Material application type | Wood, acrylic, plastic, foam board, PVC, metal, aluminum, glass,ceramic, stone, sticker, leather, phone case, crystal, golf ball, bottle and many flat surface materials. | |
Printing Speed | 3 square meters per hour | 5 square meters per hour |
Ink type | UV Ink | |
Ink Color | CMYK+ 2 White or CMYK+LC+LM | CMYK+ 2 Varnish + 6 White |
Ink Cartridges | Continuous ink supply system ink cartridges | |
Picture drying system | UV led lamp curing drying system | |
Platform in and out | Automatic, laser positioning, accurate | |
Platform lift | Automatic/manual adjustment, height sensing, photoelectric shooting limit switch | |
Rip Software | MainTop V6.1 rip software, optional PhotoPrint | |
Printing method | Print white ink, Print color ink, White+Color ink printing at one time | |
Image type | TIFF, JPEG,EPS,PDF etc. | |
Color control | Comply with international ICC standard, with curve and density adjustment function | |
Interface | high speed USB transmission USB2.0/3.0 | |
Operation System | Windows 7, Windows 8, Windows 10, Windows 11, 32-bit 64-bit | |
Working environment | Temperature: 10°-35° C, Humidity: 40%-65%RH | |
Working voltage | 220V, 50HZ, optional 110V 60HZ | |
Machine Weight | about 60kg | |
