LC UPC 12 Color MM Pigtail
Posting date : Mar 20, 2019
Membership
Free Member Scince Jan 24, 2019
Min. Order Quantity
1
Supply Abillity
10000
Port
shenzhen
Keyword :
Category
Contact
Jack Xiao
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
optic fibre cable
HS-CODE
9001-10
Package & Delivery Lead Time
Detailed Description

LC UPC 12 Color MM Pigtail

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

Connector Type LC
Polish Type UPC
Fiber Mode Multi mode
Insertion Loss ≤0.3dB
Return Loss ≥50dB
Jacket Material PVC/LSZH

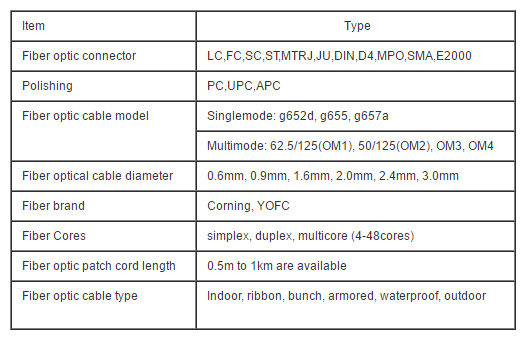

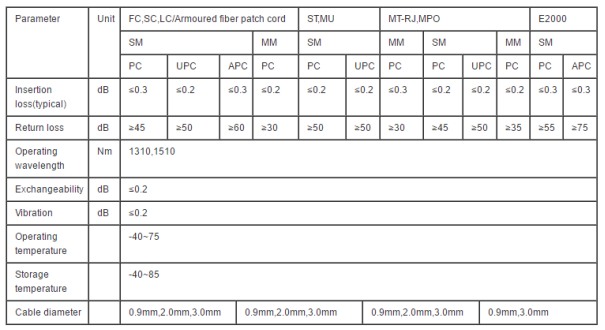

Specification

LC UPC 12 Color MM Pigtail565

Features

Accurate Mechanical Dimensions

Low Insertion Loss,high return loss

Excellent compatibility

Excellent repeatability

Excellent Temperature stability

No Polishing, no Epoxy

More Convenient to install

Application

Local Area Network

Optical fiber communication system

Optical access network(OAN)

Optical CATV

Optical fiber sensor

Fiber optics data transmission(FODT)

Active device termination

Equipment test

Order information

 LC UPC 12 Color MM Pigtail1112
