Original SKF Bearing 30302 J2 Chrome Steel Electric Machinery 15x42x13mm Tapered Roller
0 likes
Germany [DE] Original SKF Bearing 30302 j2 Chrome Steel Electric Machinery 15x42x13mm Tapered Roller is a bearing having thick outer ring and a stud to which taper rollers are built into and it is a bearing having small friction coefficient and excellent rotational performance designed for outer ring revolution.With the purpose of increasing the load area effectively,the radial gap of bearing 32032 is smaller than the general taper roller bearings. Therefore, it alleviates the impact load, and a stable long life is gained.
Original SKF Bearing 30302 j2 Chrome Steel Electric Machinery 15x42x13mm Tapered Roller
Related models and specifications of 30302 j2:
| bearing | sizemm | /kN | weight/kg | old meodel | ||||
| d | D | T | B | Cr | Cor | W≈ | ||
| 32004 | 20 | 42 | 15 | 15 | 25.0 | 28.2 | 0.095 | 2007104E |
| 320/22 | 22 | 44 | 15 | 15 | 26.0 | 30.2 | 0.100 | 20071/22E |
| 32005 | 25 | 47 | 15 | 15 | 28.0 | 34.0 | 0.110 | 2007105E |
| 320/28 | 28 | 52 | 16 | 16 | 31.5 | 40.5 | 0.142 | 20071/28E |
| 32006 | 30 | 55 | 17 | 17 | 35.8 | 46.8 | 0.170 | 2007106E |
| 320/32 | 32 | 58 | 17 | 17 | 36.5 | 49.2 | 0.187 | 20071/32E |
| 32007 | 35 | 62 | 18 | 18 | 43.2 | 59.2 | 0.224 | 2007107E |
| 32008 | 40 | 68 | 19 | 19 | 51.8 | 71.0 | 0.267 | 2007108E |
| 32009 | 45 | 75 | 20 | 20 | 58.5 | 81.5 | 0.337 | 2007109E |
| 32010 | 50 | 80 | 20 | 20 | 61.0 | 89.0 | 0.366 | 2007110E |
| 32011 | 55 | 90 | 23 | 23 | 80.2 | 118.0 | 0.551 | 2007111E |
| 32012 | 60 | 95 | 23 | 23 | 81.8 | 122.0 | 0.584 | 2007112E |
| 32013 | 65 | 100 | 23 | 23 | 82.8 | 128.0 | 0.620 | 2007113E |
| 32014 | 70 | 110 | 25 | 25 | 105.0 | 160.0 | 0.839 | 2007114E |
| 32015 | 75 | 115 | 25 | 25 | 102.0 | 160.0 | 0.875 | 2007115E |
| 32016 | 80 | 125 | 29 | 29 | 140.0 | 220.0 | 1.270 | 2007116E |
| 32017 | 85 | 130 | 29 | 29 | 140.0 | 220.0 | 1.320 | 2007117E |
| 32018 | 90 | 140 | 32 | 32 | 170.0 | 270.0 | 1.720 | 2007118E |
| 32019 | 95 | 145 | 32 | 32 | 175.0 | 280.0 | 1.790 | 2007119E |
| 32020 | 100 | 150 | 32 | 32 | 172.0 | 282.0 | 1.850 | 2007120E |
| 32021 | 105 | 160 | 35 | 35 | 205.0 | 335.0 | 2.400 | 2007121E |
| 32022 | 110 | 170 | 38 | 38 | 245.0 | 402.0 | 3.020 | 2007122E |
| 32024 | 120 | 180 | 38 | 38 | 242.0 | 405.0 | 3.180 | 2007124E |
| 32026 | 130 | 200 | 45 | 45 | 335.0 | 568.0 | 4.940 | 2007126E |
| 32028 | 140 | 210 | 45 | 45 | 330.0 | 568.0 | 5.150 | 2007128E |
| 32030 | 150 | 225 | 48 | 48 | 368.0 | 635.0 | 6.250 | 2007130E |
| 32032 | 160 | 240 | 51 | 51 | 420.0 | 735.0 | 7.660 | 2007132E |
| 32034 | 170 | 260 | 57 | 57 | 520.0 | 920.0 | 10.400 | 2007134E |
| 32036 | 180 | 280 | 64 | 64 | 640.0 | 1150.0 | 14.100 | 2007136E |
| 32038 | 190 | 290 | 64 | 64 | 652.0 | 1180.0 | 14.600 | 2007138E |
| 32040 | 200 | 310 | 70 | 70 | 782.0 | 1420.0 | 18.900 | 2007140E |
| 32044 | 220 | 340 | 76 | 76 | 908.0 | 1670.0 | 24.400 | 2007144E |
| 32048 | 240 | 360 | 76 | 76 | 920.0 | 1730.0 | 25.900 | 2007148E |
| 32052 | 260 | 400 | 87 | 87 | 1120.0 | 2170.0 | 38.000 | 2007152E |
| 32056 | 280 | 420 | 87 | 87 | 1190.0 | 2290.0 | 40.200 | 2007156E |
| 32060 | 300 | 460 | 100 | 100 | 1520.0 | 2940.0 | 57.500 | 2007160E |
| 32064 | 320 | 480 | 100 | 100 | 1540.0 | 3000.0 | 60.600 | 2007164E |

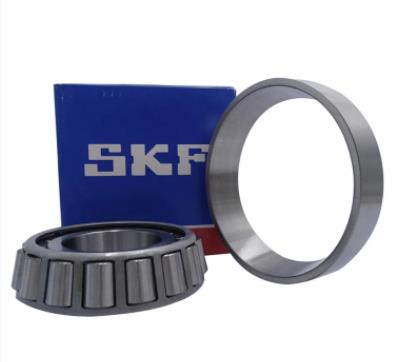

Click enlarge Image
