fireproof waterproof straw board machine
Posting date : Jun 03, 2017
Membership
Free Member Scince Jun 03, 2017
FOB Price
USD5000
Min. Order Quantity
1 SET
Supply Abillity
15 sets per month
Port
Qingdao Port
Payment Terms
30 days after receivd your payment
Package
container
Keyword :
Category
Contact
Huina Liu
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
chuangxin
Model Number
XD-AD
HS-CODE
8408-20
Package & Delivery Lead Time
Package
container
Detailed Description
Product Description

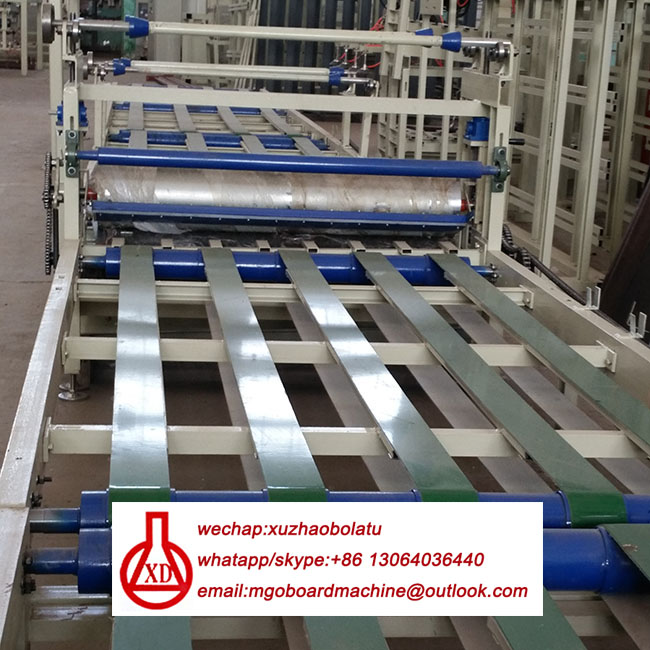

straw board making machine line

The production line adopts the technology of double-drive double-roller extruding, and the product is formed once

after sizing, material feeding, spreading no-woven cloth, compounding and repressing. fireproof mgo board

production line runs stably with high automatic degree,  the specification of its product can be adjusted arbitrarily.

The equipment actually realizes the industrial production line of new model building wall board, and the boards have even and glazed surface with high compactness.

 The equipment largely reduces the labor intensity of worker and thoroughly changes many shortages of the former

casting forming with upright mould or flat mould, such as large mould usage, low recycling rate, required electrical

heating or steam heating, single kind of product as well as the sound insulation and heat-preserving which don’t

 meet the market requirements.



Technology featuresThere is not any requirement about high temperature and high pressure during production processing. The board

will be formed at one time after roller-extruding under the conditions of normal temperature and normal pressure.

This is a green environmental-protection project, because that there is no waste water, waste materials and waste

gas during its production processing. The finished board don’t need high temperature drying, air-drying and

watering,and under the normal temperature, they will dry well indoor.

Advantages
Number
Item
Content
1
Low cost
Low labour and raw materials costs
2
Long life
Up to 30 years
3
Recycling use
Reused for more than 8 times
4
Environment protection
Environment-friendly raw materials used
5
Flexible layout
adjusted according to your requirement
Equipment components

This  automatic straw board production line in China is made up of two parts, Board making machine line and Board four-sides cutting machine Line

Board Making machine Line

NO.
name
Function
Size (mm)
Power(KW)
Quantity(set)
1
Slurry mixer
Mixing cement mortar of up and own materials
2300×820×820
3
2
2
Main mixer
Mixing middle materials
2800×1500×1300
18.5
2
3
Crusher
Crush and collection material after cutting
1960×880×1070
11
1
4
Duplex units feed in mould board
Automatic feed-in mould board on the main formed units, no need by manual, can reduce labor, improve work speed.
4800×3100×2800
1.5
1
5
Main formed units
It includes all of device of automatic feed-in cement mortar, fiber cloth, spreading, one-time forming and etc.
29000×1800×1500
11.5
1
6
oil brusher
It can adhibit the PVC paper on the mould board by automatic. (Or brush the oil on the mould board)
2700×1600×800
1.1
1
7
Automatic tracking cutting device
It can cut the product on production line when it’s wet, and it will not hurt the product and mould board, reduce the labor, low labor intensity .
4500×2000×1450
2.45
1
8
Hydraulic lifter of receiving board system
It can load the formed board on the form rack, reduce labor, reduce hurting the board when by manual, and improve automatic.
2700×3800×1700
9.6
1
9
PLC Control system
Control the production line automatic.
750×500×1800

1
conditions

The production line is composed of board-making machine,glue-spreading and veneering-drying machine and

glazing machine.according to the production and the automatic degree, this production line is divided into 6

models and three specifications ,such as large ,middle and small specification.The production line for mgo board

has :production workshop ,finished product workshop and raw material warehouse . workshop:100---1000m2,

worker:3---6person,water:ordinary water,electricity:1.1—10KW(according to different scale)

Project Feature

1. The source of the production raw materials is widely with no regional restriction. The product is made of magnesia, mgcl2,fiber glass mesh, on-woven fabrics and other fillers. The board is formed one-time by the machine.  It is easy operation, low production cost, small investment and fast effectiveness.

2. The automatic mgo board production line has high automatic degree, simple production technology, low labor intensity and production line is no noise and three wastes (waste water, waste gas and waste residue) during production.3. Low production energy consumption. With the influence of chemical reaction, it can meet the requirements about  production technology without high temperature and high pressure. 4. It can produce according to different customers' request like size (length* width*thickness) , material .This  automatic mgo board production line in China can produce boards Max length 3660mm and width is 1250mm. Thickness from 3-25mm.

board introduction

product model

1. Thickness: 2-24mm2. Width: 600mm-1300mm3. Length: 2400mm-3000mm 4. Capacity :200 -----2500 sheets per day 8 hours .5. Configuration :customization

frequency
pressure
equipment
rooms
capacity
50HZ
380V
1.7million M2
12M*80M/9M*40M
10KW-15KW
Item
Size
Thickness
weight
1
1220*2440mm
3mm
10kg
2
1220*2440mm
4mm
14kg
3
1220*2440mm
6mm
18kg
4
1220*2440mm
8mm
24k
5
1220*2440mm
10mm
28.5kg
6
1220*2440mm
12mm
34kg

Features of  mgo board:

1.Strong fireproofing capability2.Good shockproof capability3.Smooth and scratchproof face4.Good safety performance5.Superior performance in sound insulation and heat insulation6.Damp-proof and non-reaction with halogen7.Wide applicable scope

8.Bend-proof

application

MgO Board Machine mainly produces all kinds of magnesium oxide boards, they can be used for ceiling, wall skirting, decorating of indoor wall and lining board for furniture.It can replace three-ply board, five-ply board, flakeboard, MDF (Medium Density Fiberboard ) and Gypsum Board.

Technology index

Oxygenic index %
>90
Level combustion
SO
Vertical combustion
SO
Water content rate
10.9%
Capacity
1.15g/cm3
Static bending intentsity
169.46Mpa
Density
T/m3 1.13

Water resistance :Without chalking for 24 hours and there is no change on surfaceNo “Three-waste” (waste water ,waste gas ,waste residue),no pollution and environmental protection .

Our Service
1. Full life-cycle value services:
Our company provides latest building materials/Magnesium oxide board production machine/Siemens PLC control automatic Mgo board production line, cost accounting, installation and operation, equipment maintenance and the whole life cycle technical all support.
2. All-around technical service:
We provide technical formula for clients, to help clients to occupy the leading position in the market.
3. Complete data specification:
Provide production line equipment technical data and instructions, and provide the Mgo board production line formula.
4. Quality commitment:
Our company regards product quality as the lives of enterprises, the main components and wearing parts are made of high quality.
5. Trade service:
We can help the customer to do the consignment and the relevant procedure for import and export.
FAQ

Q1.What’s your advantage? Why we choose you?A:1)10 Years experience of test pen production and R&D.We have the most professional techniques and team. More                  advantage in price    2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized.    3)The project is envoronmental protection.The main raw materials are from gricultural and industrial waste, such as            crops straw, sawdust, fly ash, sand and etc. The products are absolutely ecological and low cost.Q2.What’s the Payment?A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the procedure is complex and        the fee is high.Q3.Are you a factory or trading company?A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and                         cooperate with us.

Q4.How long is the warranty of your equipment?

A:1 Year.

Q5.Do you supply spare parts?

A:Excellent easy broken parts support for buyers. Easy broken parts guarantee for one year.

Q6.Will you provide training?

A:The training is free of charge , and our engineer will be on duty to train your worker.

Q7:How will you provide installation&commissioning?

A:Will provide 2~8persons(adjustable according to the degree of automatic )for installation.

Our Company

Shandong Chuangxin Building Materials Machinery Co., Ltd., as a new and high technology enterprise registered at provincial industrial and commercial department and a modern group enterprise integrated with scientific research, processing and trade mainly focus on research, development and popularization of decorating technique, building materials technology and machinery. Its many patent products were sold throughout China and some were exported to Russia, Southeast Asia, Hong Kong and Taiwan. We have had rich assets and intellectual property rights after many years. The company is composed of Machinery Factory, Technology Development Center, Decorating Materials Factory, Handicraft Development Center and Research Institute of Paint and Coatings, and it establishes cooperative relationship with Higher Educational Institutions and Scientific Research Academy in Beijing and Shandong. With perfect scientific research production base, rich material conditions and technical force and acute market feeling, the company reformed boldly and strengthened exchange and cooperation with the world, and at the same time made its technology and equipment always meet requirements of changing market.
