Briquette machine/static pressure briquette machine/briquette making machine/briquette press machine for charcoal, saw dust, desulfurization gypsum, coke powder pressing

Product

Briquette machine/static pressure briquette machine/briquette making m...

Posting date : May 04, 2016

Click enlarge Image

Membership

Free Member Scince Apr 20, 2016

FOB Price

Negotiatable

Min. Order Quantity

1set

Supply Abillity

100ste/year

Port

Qingdao

Payment Terms

T/T or L/C

Package

Wood Case or Standard Container

Keyword :

briquette machine

Category

MACHINERY & ELECTRICAL | Nuclear re | Machinery | Machinery

Contact

Wang

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

TongHeng

Model Number

THJY1000

HS-CODE

8474-80

Package & Delivery Lead Time

Package

Wood Case or Standard Container

Delivery Lead Time

30days after confirm the order

Specifications

Type of Certification

Quality Supervision and Inspection

Reference no.

ZJ201406023

Name.

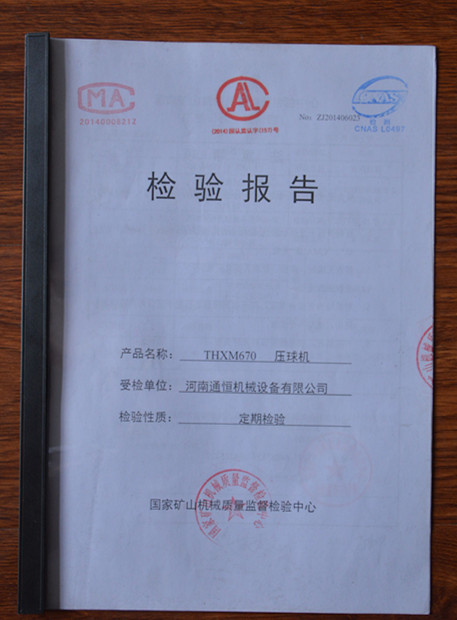

Testing report

Issued By

National Mining Machinery Quality Supervision and Inspection Center

Start Date (validity period)

0000-00-00

End Date (validity period)

0000-00-00


Detailed Description

Introduction

Static pressure briquette machine: mainly press a variety of iron, ore, iron oxide, slag, refractories and so on, every powder materials which required refining burn are needed static pressure briquette machine.

Main Features

The main feature of static pressure ball machine is mainly used in special chemical industry, static pressure ball machine is fit for wet powder ball press, which must be added to an appropriate proportion of water or other liquid adhesive material. Low pressure briquette machine for a variety of materials repression have good results, such as: light burning magnesium, iron skin, steel sludge, iron powder, etc. Low pressure briquette machine supporting reducer, motor and gear drive through the curved tooth couplings, hosts two. roll by the synchronous gear for rotation. Low pressure briquette machine mainly consists of motor, reducer, rack, pressing bodies, product delivery institutions, mainly characterized by small size, small power, and with a small movable conveyor.

Technical Parameters

Model	Roller Dia(mm)	Capacity(t/h)	Reducer	Power(kw)	Regulating way
THJY430	430	5-8	ZQ500	11	Machine
THJY520	520	6-10	ZQ650	15-18.5	Machine
THJY670	670	10-15	ZQ650	22	Machine or Hydraulic
THJY800	800	20-25	ZQ850	55	Machine or Hydraulic
THJY1000	100	30-40	ZQ1250	75-90	Hydraulic adjust forming pressure
