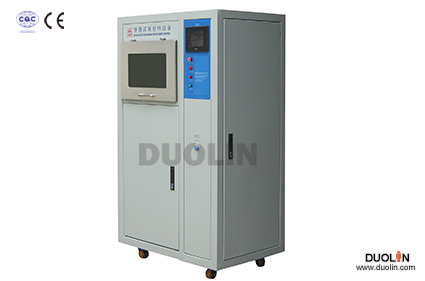

HF XRF Sample Preparation Induction Equipment

PLC controlled,

Two stations (fusion + molding) chamber with cooling system

Four stations (two fusions + two molding) chamber with cooling system

High frequency fusion sample preparation equipment is used to prepare oxidic and metallic samples for XRF Analytical System. Induction fusion method is known as highest degree accuracy sample preparing method in analytical field.

Induction pipe bending

Induction power supply

induction system

water cooling system

XRF sample preparation equipment

Application:

Building Materials e.g. cement, glass, ceramic, refractory material
Aluminum, Steel & Metals e.g. precise metals, ferrous metals and non-ferrous metals.
Mining and Mineral
Chemical Industry
Materials Research
Quality control environments

Feature

PLC controller with Touch Screen user interface and 25 user-definable programs can be saved.
PID temperature controlling ensures quality of sample to improve accuracy of analysis because temperature and time are critical factors in fusion process.
High production rate by two powerful solid state power generators. 100 samples per day may be prepared with 8 hours operation.
Tilting and turning device improves the homogeneity and can also be used for high melting materials. Fusion temperatures up to 1500℃ will be achieved.
Separated fusion and molding design avoid rough bottom of Pt/Au crucible, solve the problem of polish, and extend service life of Pt/Au crucible.

Specification

Model	HMST-I-MZ	HMST-II-MZ
Input Power	Single size AC220V/50Hz	Single size AC220V/50Hz
Working Voltage	AC180V～AC240V	AC180V～AC240V
Max. output power	2X4KW	2X4KW
Frequency	50-100KHz	50-100KHz
Efficiency	≥85%	≥85%
Duty Cycle	≥80%	≥80%
Adjustable Melting Current Range	110～500A	110～500A
Adjustable Shaping Current Range	120～600A	120～600A
Adjustable Heating Time Range	0s～999s	0s～999s
Adjustable Swearing Time Range	0s～999s	0s～999s
Adjustable Shaping Time Range	0s～999s	0s～999s
Cooling Water Pressure	0.1～0.3MPa	0.1～0.3MPa
Max. melting temperature	1500℃	1500℃
Max. melting temperature	1500℃	1500℃
Swearing Frequency	1n/ min～37n/min	1n/ min～37n/min
Rotating Rate	30n/ min—34n/ min	30n/ min—34n/ min
Control	Touch Screen、PLC(available 15programs)
Casting way	Melting and Casting are separating
Air Collection System	Outside air collection system	Outside air collection system
Air Collection System	Outside air collection system	Outside air collection system
Pieces Per Time	2 beads	2 beads
Beads Per Hour	about 6 beads	8-12 beads
Dimension	870×580×1560 (mm)	870×580×1560 (mm)
Cooling System Dimension	750680900(mm)	750680900(mm)
