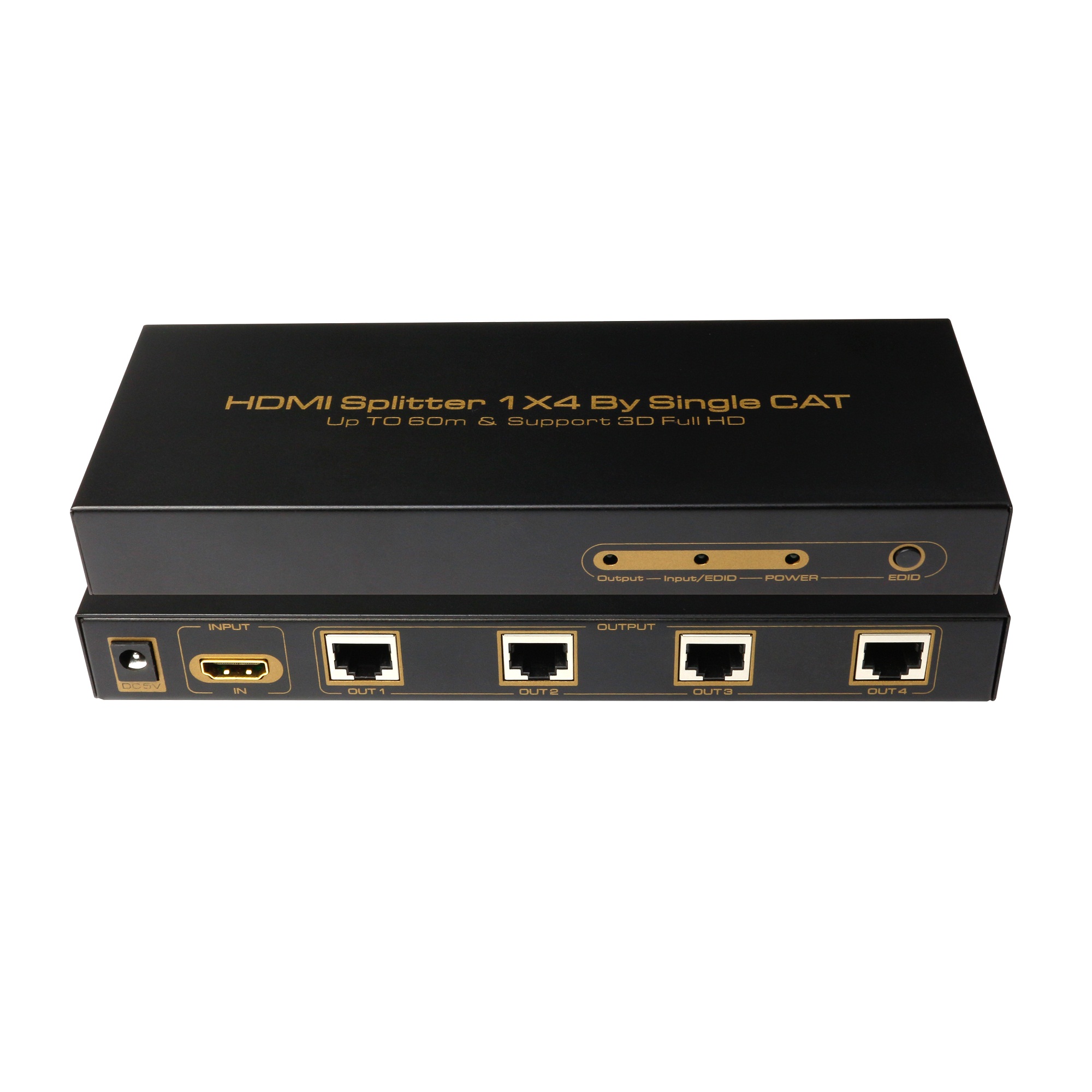

HDMI Splitter 1X4 By Single CAT(Up TO 60m & Support 3D Full HD)

Our series of HDMI Converters, switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.

 This extender can extend and connect one HD Source to four HD Displays or Projectors by four pieces of cat6/7 at the same time.

The extending distance can reach 60m. This extender meets the needs of multi-route and low-cost HD Signal long distance transmission well.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES

1. One HDMI input distribute and extend to found Display by four cat6/7 cable. The extend distance can be up to 60m.

2. Support 3D

3. Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

4. Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

5. LED Status Light:the related led light will go bright.

6. The extend distance can be up to 60m.

7. Support signal retiming

8. No loss of quality

9. Installs in seconds

10. TX uses the DC5V/3A power adaptor.

11. Four RX: each one uses 5V/1A power adaptor

Operating&Connecting

1. To use one piece of HDMI Cable to connect the HD Source with the HDMI input port of the extender, the HDMI Cable up to 15m.

2. To use one pieces of cat6/7 for each distributed HDMI Signal to connect the sender and receive, the distance between the sender and receiver most up to 60m.

3. To use one HDMI cable to connect the RX with the Display, The HDMI Cable length can be up to 20m.

4. To connect the attached powers at the receiver and sender.

SPECIFICATIONS:  YT-HDSPEX104

Length of CAT-6 cable between Rx and TX.......................  up to 60m

HDMI Input................24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format input.......DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

HDMI Output...................24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format output.................LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth.............................................................................225MHz

Max baud rate...................................................6.75Gbps

Input Video signal .............................................0.5~1.5Volts p-p

Output DDC signal ...............................................5Volts p-p (TT1L)

Input HDMI cable distance................<=15m AWG26 HDMI standard cable

Output HDMI cable distance............<=20m AWG26 HDMI standard cable

Max working current(TX)..................................2000mA

Max working current(RX).............................................600mA

Power adapter format(TX)........Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/3A

Power adapter format(RX)........Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range..............................................(0 to +40℃)

Operating Humidity range...................5 to 90%RH (No Condensation)

Dimension (TX) ........................................................205x74x26(mm)

Dimension (RX)..........................................(82X44X22) (mm) X4pcs

Weight......................................................................750g

Notes:

Pls use the machine as the instruction listed to keep the long use lifetime of the machine.

1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.

2. All parts will be free from the strong shake, hit, fall.

3. Touching the power adaptor with the wet hands is prohibited.

4. Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.

5. Pls turn the power off when the machine is not used for long time.

6. Pls do not open the cover and do not touch the inside parts.

7. Pls use the original factory power adaptor.

Before power on, pls check the connection line carefully. And make sure that all interfaces

are normally connected. The common trouble shooting way shows below:
