Electrical control panel production machine for sale
Posting date : Jul 05, 2019
Membership
Free Member Scince Oct 10, 2018
FOB Price
USD78000
Min. Order Quantity
1SET
Supply Abillity
60SET
Port
SHENZHEN
Payment Terms
BY TT, 30% IN ADVANCE, BALANCE BEFORE SHIPMENT
Package
MACHINE INTO CONTAINER
Keyword :
Category
Contact
Rebaca
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Superda
Model Number
YX21-250/400
HS-CODE
8462-99
Package & Delivery Lead Time
Package
MACHINE INTO CONTAINER
Delivery Lead Time
60 DAYS

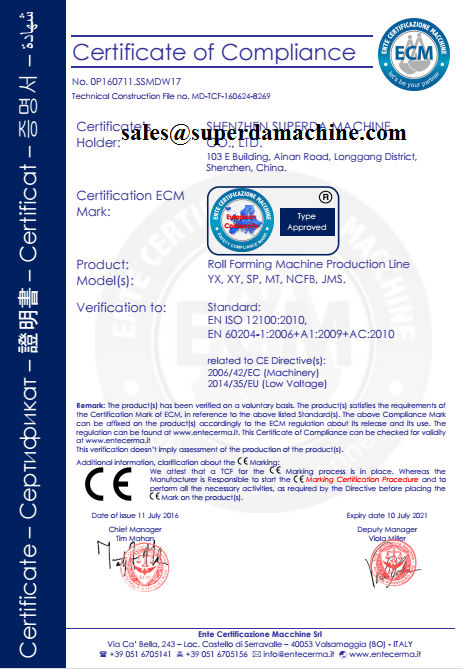

Specifications
Type of Certification
CE
Reference no.
16071117
Name.
ROLL FORMING MACHINE CE REPORT
Issued By
ECM
Start Date (validity period)
2016-07-27
End Date (validity period)
0000-00-00

Detailed Description

Advantage of control panel machine

Outdoor using water-proof IP65 & IP66 electronic distribution enclosure roll former design with patent for sale,Superda Metal roll forming machine with durable running quality, Siemens brand PLC control system is easy handle and safety operation. Completed Metal forming machine warranty 1 year, Roller engineer service is a available to any country training and installation testing.

Main Forming machines  (for panel width 150,200,250,300,350mm )

6.1  Forming Roller:20 stations,and add Rub-roll, To make sure the surface profile no scratches.
6.2  Side Panel:T.18mm ,A3 steel   Heavy duty 。
  6.3  Rolling speeding: 2-8 m/min
      6.4  Roller material:GCr15,overall quenching, hardness HRC56-62 ℃.
6.5  Motor power:7.5KW。
6.6  Main Roller :¢75mm,45 #。
6.7  Equipment base: 45 # H type using welded steel plate.
6.8  Transmission: chain drive.
6.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.

Electrical control panel production machine Technical parameters
No.
ITEM
PARAMETER
REMARK
1
MATERIAL
Type
Cold-rolled strip steel, galvanized sheet

T.(mm)
0.8-1.2mm

Yield Strength (Mpa)
Q235

2
Forming product Width
150,200,250,300,350mm

3
Forming speed (m/min)
2-8m
Including hole
4
Forming main power (KW)
7.5 KW
FYR
5
Hydraulic power (KW)
18.5 KW
FYR
6
Bending power (KW)
3 KW
FYR
7
Voltage
 AC380V,50Hz,3P


Control panel process
(A) 2 in 1 Uncoiler Straightening→servo feeder→Hydraulic press breach device  → Guide device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack
(B) Bending machine with tool


Electrical box production machine service

Shenzhen Superda Machine co., Ltd is a China roll former fabricator, Superda professional roll forming machine mainly is highway guard rail roll forming machine,cable tray roll forming machine, floor deck roll forming machine and electronic cabinet enclosure machine. And other hand, the storage rack roll forming machine,solar rack roll former etc roll former or roll former design all is our job expertise.

We support engineer oversea install machine and help metal manufacturers training production engineer.

Electrical control panel production machine running video
