Micro Powder Mill
Posting date : Jun 05, 2019
Membership
Free Member Scince Mar 07, 2019
FOB Price
1
Min. Order Quantity
1
Supply Abillity
1
Port
1
Payment Terms
1
Package
1
Keyword :
Category
Contact
Ralap Zeng
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Guilin Mining Machinery Co., LTD.
HS-CODE
6804-
Package & Delivery Lead Time
Package
1
Detailed Description

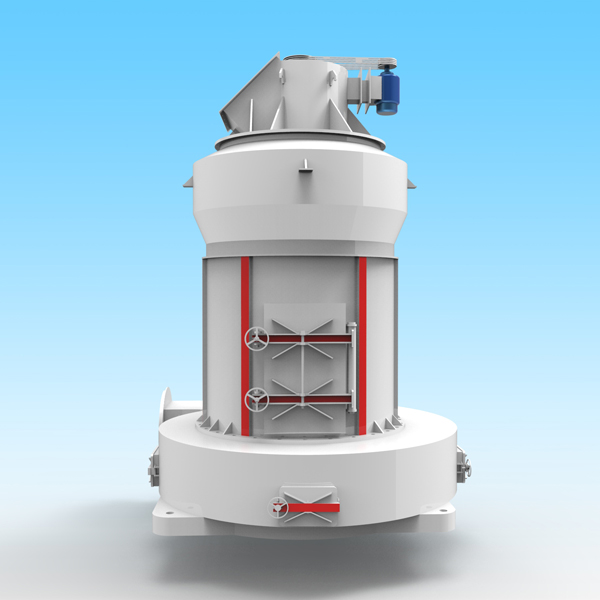

Micro Powder Mill

GKW Micro Powder Mill is mainly used in chemical industry such as grinding glass, rubber, pesticides, enamel, paint, phosphate fertilizer, paper. Hardness below seven Moh's hardness following humidity below 6% non-flammable and non-explosive materials. Such as talc, barite, calcite, limestone, manganese ore, iron ore soil, chrome ore, quartz, gypsum, bentonite, etc.

Micro Powder Mill Technical & Structural Benefits:

  • Finished particle size 400 mesh -1250 mesh (stepless adjustment);
  • Breakthrough hard materials and powdery materials, and grind the materials such as talc and fly ash;
  • Low cost of equipment wearing parts;
  • Convenient equipment maintenance, maintenance & replacement of wearing parts;
  • Low energy consumption and high output, for users to create better economic results;
  • Energy conservation and environmental protection.

Model

Max Feeding Size

Product Fineness



(mash)

Capacity

Total Installed Power

GKW970

≤10mm

400-1250mesh

500-3200kg/h

120kw

GKW1270

≤10mm

400-1250mesh

1000-6500kg/h

225kw


The micro powder mill is a highly efficient flour milling equipment, which was made on the basis of high-pressure powder mill and was improved by fineness classification technology. The advanced fineness classification technology of Germany and Japan adopts the principle of fluid mechanics. Scientists studied diligently with a quiet mind, and then they designed a new micro powder mill. So they solve the problem of high cost successfully. It is a high-efficiency and high-pressure micro powder mill. The Application Scopes of Micro Powder MillThe micro powder mill is mainly suitable for grinding of conventional materials and the ultra-fine powder processing of non inflammable and non explosive materials, such as kaolin, limestone, calcite, talcum, marble, barite, gypsum, iron oxide red, iron oxide green, aluminum hydroxide, pigment, bentonite, clay, coal, activated carbon and so on, the humidity of which is less than 8%, and the Moh's hardness of which is less than level 6.The Structure Characteristics of Micro Powder MillThe high-pressure micro powder mill mainly consists of the main engine, blower, superfine analyzer, finished cyclone powder collector, bag filter and connecting duct. According to user needs, it can provide with auxiliary equipment such as the hoist, storage bin, electric cabinet, feeder, crusher and so on. In the grinding mill room, the grinding roller assembly is hung on the grinding cradle through the cross arm shaft. The grinding cradle, spindle and the relieving tool post are fixed. The pressure spring is tightly pressed on the outer end of the cantilever housing of the grinding roller bearing chamber by a tension rod. Taking the transverse load axis as the supporting point, the grinding roller is firmly pressed on the inner surface of the grinding ring by the spring pressure.When the motor is rotated through the drive, the blade of the blade is synchronized with the grinding roller, and the roller rolls around the surface of the grinding ring and rotates around itself. The analysis machine drives the rotating of the impeller through the motor drive. The speed adjustment of the analysis machine determines the fineness of the powder. The relieving tool in the relieving tool post and the grinding roller rotate at the same time. Then the grinding roller rotates on the inner surface of the grinding ring and revolves around itself. The analysis machine drives the impeller of the analysis machine through the motor drive device, and the speed adjustment of the analyzer determines the fineness of the powder.The Main Features of Micro Powder Mill
  • The application scope of the high-pressure powder mill is much larger than that of the airflow mill.
  • Compared with other mills, the grinding pressure of grinding roller on the material can provide 800---1200Kg under the action of high-pressure spring. It saves energy. Under the same circumstance of output and fineness, the energy consumption of the system is only 1/3 of that of the airflow mill.
  • The investment is small and the efficiency is high. Under the same circumstance of output and fineness, the price is only 1/8 of the airflow mill.
  • Compared with the air mill, the production link is less. Firstly the airflow mill must crush the material of 20mm to the superfine powder of 100 mesh, and the high-pressure micro powder mill can make the material reached the average particle size about 6.5 μm to 12.5 μm for one time, of which the size is below the 20mm.
  • The grinding device adopts overlapping type multiple stage seal and has good sealing performance.
  • The dust removal effect of the mill can totally reach the national dust emission standard.
